Corelinx DAC-CL4660

The CL4660 digital-to-analog converter (DAC) is a 16-bit high-precision, low-power, voltage output device. The CL4660 is designed to be monotonic and provide less than 1LSB linearity. The device includes a 2.5V, 5ppm/˚C internal reference that provides a full-scale output voltage range of 1.25V, 2.5V, or 5V. The CL4660 incorporates a power-on reset circuit that ensures that the DAC output powers up at zero or midscale and remains there until valid code is written to the device. These devices consume a low 1mA current and feature a power-down feature that reduces current consumption to 1.6µA (typ) at 5V. The CL4660 uses a universal 3-wire SPI serial interface operating at clock frequencies up to 50MHz.

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

  • Product quantity

Home > Manufacturer > Corelink > product details

Merchant qualification:

Founded in 2018, CoreLink has R&D centers in Beijing, Qingdao, Shanghai, and Shenzhen. It is a national high-tech enterprise focusing on digital-analog mixed signal chain chip design.

Product Introduction&Application Fields

product details

  • 16-bit performance: 1LSB INL and DNL

  • Power supply voltage range: 0～5.5V

  • Buffered output voltage range: 25V, 2.5V or 5V

  • Extremely low power consumption: 1mA

  • Internally integrated 5V, 5ppm/˚C precision reference

  • 3-wire serial interface, SPI compatible, up to 50MHz

  • Power-on reset: zero level or mid-level

  • Temperature range: –40～+85˚C

  • Package: 8-pin MSOP-8

Product specifications

Brand inventory product recommendations

Model
Batch number
Package
Quantity
Warehouse
Description
Specifications
Suppliers
Inquiry
Model:Corelink SAR ADC-CL1616
Comparison
Product-Corelink SAR ADC-CL1616
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:CL1616 is a 16-bit DAS that supports dual-channel simultaneo...
Specifications:--
Supplier:Corelink
Inquiry:

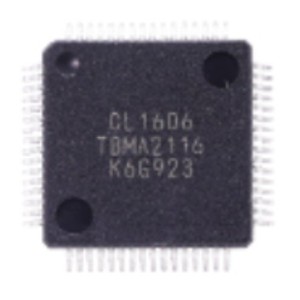

Model:Corelink SAR ADC-CL1606
Comparison
Product-Corelink SAR ADC-CL1606
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:The CL1606 is a channel-synchronous sampling analog-to-digit...
Specifications:--
Supplier:Corelink
Inquiry:
Model:Corelink DAC-CL4651
Comparison
Product-Corelink DAC-CL4651
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:The CL4651 digital-to-analog converter (DAC) is a 16-bit hig...
Specifications:--
Supplier:Corelink
Inquiry:

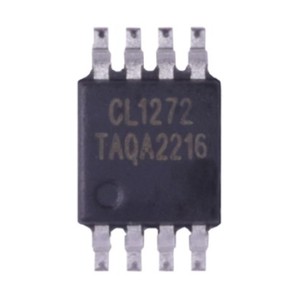

Model:Corelink SAR ADC-CL1272
