Herclues FPGA HME-P (Pegasus) Series

This series of products uses a new LUT 6 architecture and 32-way full clock network, and the operating speed can reach 700MHz. In addition, in response to the application needs of the high-speed and large-capacity market, P1 also integrates high-speed Serdes interfaces, up to 6.5 G, 1333Mbps hard-core DDR2/3 controller and hard-core PCIe interface, and 36*18 DSP processor. This product has a 40nm CMOS process and uses a new LUT6 architecture, which is equivalent to 60K 4-input LUT logic units, up to 5G bps Serdes high-speed I/O, and has 1333M bps hard-core DDR2/3 control and PHY, hard-core PCIe Gen1/ Gen2 is aimed at the FPGA market that requires high speed, high performance and large capacity.

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

  • Product quantity

Home > Manufacturer > Hercules Microelectr > product details

Merchant qualification:

Hercules Microelectronics is one of the first domestic companies to enter into independent research and development, large-scale production, and mass sales of general-purpose FPGA chips and new generation heterogeneous programmable computing chips. The company has independent and complete independent intellectual property rights, covering full-stack technology fields such as FPGA core design, SoC architecture design, chip development, EDA software development, IP development and integration.

Product Introduction&Application Fields

product details

1.Fabric

  • 18,432 to 122,880 6-input lookup tables, 36,864 to 196,608 DFF memory locations

  • Logic performance up to 300MHz

2. Embedded RAM memory

  • Up to 1,966kb local LRAM, 64bit each

  • Up to 17,694kb programmable dual-port DPRAM, configurable to ROM, FIFO and other modes, with ECC function

3.Embedded DSP module

  • Each DSP module supports 36x18 operations or 2 independent 18x18 operations

  • Pre-add/accumulate sum supports 56-bit addition and subtraction functions

  • Multiple DSP modules can be cascaded

4.Clock network

  • 32 de-skew global clocks

  • Up to 8 PLLs supporting frequency multiplication, frequency division, and de-skew

  • 8 external clock inputs, 1 external crystal clock input

5.I/O characteristics

  • Support 3v/2.5v/1.8v/1.5v LVTTL, 3.3v/2.5v/1.8v/ 1.5v/1.2v LVCMOS

  • Support 5v LVDS/BLVDS, TMDS, Mini-LVDS

  • Support LVPECL, CML

  • Support PCI/PCI-X

  • Support high-speed LVDS interface, up to 1.3Gbps, hardware supports serial-to-parallel conversion

6.Hardcore IP

  • High-speed AXI bus

  • PCIe Gen1 (x1, x2, x4), Gen2 (x1, x2, x4)

  • High-speed Serdes transceiver supporting multiple protocols

  • 1333Mbps DDR2/3 controller and PHY interface

7.Configuration mode

  • Support JTAG, SPIx1x2x4 AS, PS and x8x16 PP

  • Supports automatic detection of configuration RAM errors and alarms to prevent SEU interference

  • Support configuration data compression

8.Support configuration data compression

  • Use 256-bit AES profile stream encryption and decryption

  • Efuse-based protection function

Product specifications

Brand inventory product recommendations

Model
Batch number
Package
Quantity
Warehouse
Description
Specifications
Suppliers
Inquiry

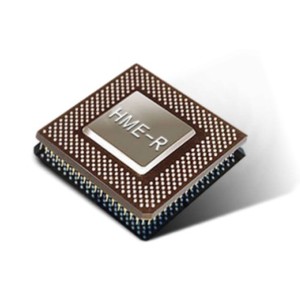

Model:Herclues FPGA HME-R (River) Series
