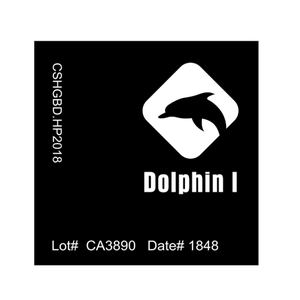

CHANGSHA HAIGE Beidou-3 high-precision chip S206N

Beidou chip-S206N miniaturized Beidou-3 high-precision chip, based on the company's "Dolphin-3" multi-system, multi-frequency high-performance baseband chip with completely independent intellectual property rights, integrates three radio frequency receiving channels, covering 1.1GHz~1.7GHz frequency band satellite signals. The chip uses the original "dolphin neuron" signal reception algorithm to support full-constellation full-frequency point GNSS signal reception. Features high integration and low power consumption design. This product is highly integrated and high-performance, with integrated RF baseband chip design, integrated three RF receiving channels, built-in low-power memory, integrated high-performance hardware accelerator, and requires only a few peripheral components to achieve high-precision positioning; small size and low costs Power consumption, using plastic BGA, size is only 8mm×10mm, typical

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

  • Product quantity

Home > Manufacturer > CHANGSHA Jinwei > product details

Merchant qualification:

Changsha Jinwei Information Technology Co., Ltd. was established in 2013. With high-precision, high-sensitivity, high-dynamic, and high-performance baseband radio frequency integrated satellite navigation and positioning chips as the core, it comprehensively provides multi-source integrated navigation and positioning modules and integrated application products. and full-chip solutions

Product Introduction&Application Fields

product details

  • Small size and low power consumption RF baseband integrated design

  • Support Beidou-2 and Beidou-3 systems

  • Supports BDS/GPS/GLONASS/GALILEO full system full frequency point signal reception

  • Embedded high-performance processor and matrix accelerator

  • Built-in NorFlash and DRAM storage unit

Product specifications
