AGILIC wireless communication RF front-end module ATF65684-11

The ATF65684-11 is a highly integrated front-end module (FEM) that contains a single-pole double-throw (SPDT) transmit/receive (T/R) switch, a high-gain low-noise amplifier (LNA) with bypass and power amplifier (PA) for high power 802.11ax applications and systems. LNA and PA disable features ensure low leakage current in shutdown mode. Contains an integrated logarithmic power detector to provide closed-loop power control over 20 dB dynamic range. The device is available in a compact 24-pin 3 x 5 mm package that reduces front-end board space by more than 50%.

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

  • Product quantity

Home > Manufacturer > AGILIC > product details

Merchant qualification:

AGILIC (Tianjin) Technology Co., Ltd., established in early 2021, is a professional fabless semiconductor design, sales, and after-sales service integrated company. The company's technology focuses on the direction of radio frequency integrated circuits, focusing on providing the ultimate broadband radio frequency chips and solutions to achieve domestic substitution.

Product Introduction&Application Fields

product details

  • Integrated high-performance 11ax PA, LNA with bypass, T/R switch and coupler

  • Exactly matched inputs and outputs

  • Integrated logarithmic power detector

  • Transmit gain: 35 dB typical

  • Support 11ax

  • Output power: +20 dBm, -43 dB DEVM, MCS11; +22 dBm, -40 dB DEVM, MCS11; +24 dBm, -35 dB DEVM, MCS9

  • Integrated temperature compensated logarithmic detector

  • High sensitivity, high gain (16 dB) LNA

  • Small (24-pin, 3 x 5 mm) package (MSL3, 260 °C, per JEDEC J-STD-020)

Product specifications

Brand inventory product recommendations

Model
Batch number
Package
Quantity
Warehouse
Description
Specifications
Suppliers
Inquiry
Model:AGILIC wireless communication RF front-end module ATF65555-11
Comparison
Product-AGILIC wireless communication RF front-end module ATF65555-11
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:The ATF65555-11 is a highly integrated 5 GHz front-end modul...
Specifications:--
Supplier:AGILIC
Inquiry:
Model:AGILIC mobile communication attenuator ATF76515-11
Comparison
Product-AGILIC mobile communication attenuator ATF76515-11
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:ATF76515-11 is a 50Ω, HaRP™ technology-enhanced 7-bit RF dig...
Specifications:--
Supplier:AGILIC
Inquiry:
Model:AGILIC mobile communication broadband frequency synthesizer ATC79550
Comparison
Product-AGILIC mobile communication broadband frequency synthesizer ATC79550
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:The ATC79550 allows the implementation of a fractional-N or ...
Specifications:--
Supplier:AGILIC
Inquiry:

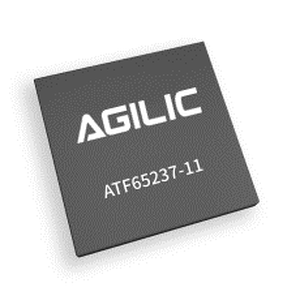

Model:AGILIC wireless communication RF front-end module ATF65237-11
