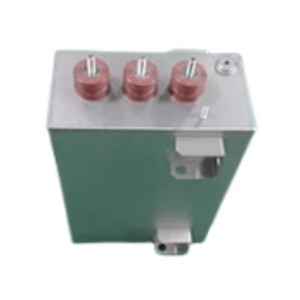

Tongfeng Electronics Power Electronic Container Type A16/A17

Tongfeng Electronics' power electronic container A16/A17 has the characteristics of safety and explosion-proof, low ESR, strong self-healing and easy installation. It can withstand large currents and high peak currents, as well as high surge currents. This product is safe and explosion-proof; it has a metallized polypropylene film; it has very little loss; low ESR; it can withstand large currents; it can withstand high surge currents; it can withstand high peak currents; it is self-healing; and it is easy to install.

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

Product quantity

Merchant qualification:

Anhui Tongfeng Electronics Co., Ltd. is a subsidiary of the national Tongling Economic and Technological Development Zone. It has developed into a well-known R&D and manufacturing base for electrical films, film capacitors and related electronic components in the same industry at home and abroad.

Product Introduction&Application Fields

product details

Rated voltage: 200Vac~900Vac

Rated capacity: 50μF~700μF

Capacity deviation ±5%, ±10%

Dielectric loss tangent: 2*10-4

Loss tangent: ≤20*10-4 (1V, 100Hz)

Withstand voltage between terminals: 5Un, 10/60s

Withstand voltage between terminal and shell: (2Un+1000) Vac, 60s

Operating temperature (casing): -40℃~+70℃

Hot spot temperature: -40℃~+85℃

Life expectancy (hours): >100000

Climate category: 40/85/56

Package: cylindrical aluminum shell

Impregnating agent: polyurethane, epoxy resin or vegetable oil

Product specifications
