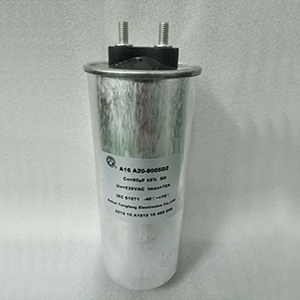

Tongfeng Electronic Power Electronic Container Type A32

Tongfeng Electronics power electronic container type A32 has the characteristics of safety and explosion-proof, low ESR, strong self-healing, good heat dissipation, easy installation, etc. It can withstand large current, high surge current and high peak current. This product is safe and explosion-proof; has a metallized polypropylene film; has very little loss; low ESR; can withstand large currents; can withstand high surge currents; can withstand high peak currents; has self-healing properties; is easy to install; and has good heat dissipation performance.

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

Product quantity

Merchant qualification:

Anhui Tongfeng Electronics Co., Ltd. is a subsidiary of the national Tongling Economic and Technological Development Zone. It has developed into a well-known R&D and manufacturing base for electrical films, film capacitors and related electronic components in the same industry at home and abroad.

Product Introduction&Application Fields

product details

Rated voltage: 400Vac~2000Vac

Rated capacity: Capacity (single item): 50μF~1200μF

Capacity deviation: ±5%, ±10%

Dielectric loss tangent: 2*10-4

Loss tangent: ≤20*10-4 (1V, 100Hz)

Withstand voltage between terminals: 5Un, 10/60s

Withstand voltage between terminal and shell: (2Un+1000) Vac, 60s

Operating temperature (casing): -40℃~+70℃

Hot spot temperature: -40℃~+85℃

Life expectancy (hours): >100000

Climate category: 40/85/56

Packaging: stainless steel shell

Impregnating agent: vegetable oil

Product specifications
