Hwa Create HGNM1631A B1L1RDSS civilian module

HGNM1631A is a B1L1RDSS navigation communication module developed by Beijing Hwa Create Technology Co., Ltd. based on the independently developed satellite navigation baseband chip HBP2012. This module integrates baseband, radio frequency, receiving LNA, transmitting PA, etc., and only needs to be connected to the external passive antenna and Its works when powered. The product is small in size and highly integrated; it is surface mounted on one side and is easy to apply.

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

  • Product quantity

Home > Manufacturer > Hwa Create > product details

Merchant qualification:

Hwa Create Corporation is one of the first domestic joint-stock enterprises to obtain complete national defense and military industry access qualifications and an "ISO9001" and "GJB9001C" dual quality certification enterprise.

Product Introduction&Application Fields

product details

  • Supports RDSS short message and location reporting functions

  • Support BDSB1, GPSL1 frequency point single frequency or combined positioning

  • Built-in LNA and 5W transmit power amplifier

  • Using TTL level serial port output, baud rate 115200

  • Using SMP stamp hole interface, single-sided surface mount

  • Size: 38mm×38mm×3mm

  • RDSS receiving sensitivity: -127.6dBmW (bit error rate is not higher than 1×[10]^(-5))

  • Positioning/communication success rate: ≥95%

  • Transmit power: ≥36dBm

  • RNSS capture sensitivity: -145dBmW

  • RNSS tracking sensitivity: -157dBmW

  • RNSS positioning accuracy: 10mCEP (PDOP≤4)

  • RNSS cold start time: 40s (@-133dBmW)

  • RNSS lock re-capture time: 2s

  • Static power consumption: ≤ 1W@3.7V

Product specifications

Brand inventory product recommendations

Model
Batch number
Package
Quantity
Warehouse
Description
Specifications
Suppliers
Inquiry

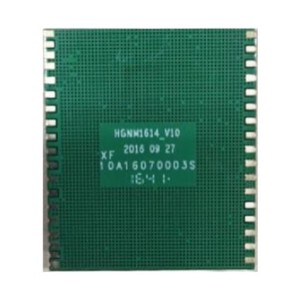

Model:Hwa Create HGNM1614 RDSS civil communication module
