MXTRONICS Beidou/GPS/Glonass multi-module baseband processing circuit

BM3013IE is the core processing chip of the multi-mode satellite navigation receiver. It can simultaneously process satellite navigation baseband signals of Beidou RNSS B1/B2/B3, Beidou RDSS L/S, GPS L1 and Glonass L1 and other frequency points to realize single system or multiple systems. Joint positioning, timing, and communication functions. Embedded with high-performance microprocessor, floating-point operation unit, large-capacity memory, and fast acquisition unit, it can complete functions such as rapid acquisition, tracking, position/speed/time calculation, and communication of satellite signals, and supports multiple peripherals and multiple formats. Positioning information and raw observation output. As the core component of the Beidou/GPS/Glonass multi-mode satellite navigation receiver, the BM3013IE chip can be used in fields such as car navigation, traffic monitoring, fishing vessel supervision, and power and telecommunications network timing.

Quick inquiry

Congratulations, the submission was successful. Please be patient and wait for us to contact you.

Back

  • Product quantity

Home > Manufacturer > MXTRONICS > product details

Merchant qualification:

Beijing MXTronics Corporation Co., Ltd. focuses on mid-to-high-end integrated circuit products and relies on its strong aerospace resources and technical advantages to develop digital circuits, analog circuits and mixed-signal circuits. Its products cover satellite navigation, communications, computers, and automotive electronics. and consumer electronics products

Product Introduction&Application Fields

product details

  • Support raw observation output

  • Compatible with Beidou RNSS B1/B2/B3, Beidou RDSS L/S, GPS L1 and Glonass L1 frequency points

  • Support single system or multi-system joint positioning, timing, and communication functions

  • Support Beidou 0/NMEA0183/RINEX standard protocol

  • Package form: QFN64

  • Working temperature: -40℃~+85℃

  • IO voltage: 3V±10%

  • Core voltage: 2V±10%

  • Working current: ≤70mA

Product specifications

Brand inventory product recommendations

Model
Batch number
Package
Quantity
Warehouse
Description
Specifications
Suppliers
Inquiry
Model:MXTRONICS Beidou II/GPS dual system navigation module
Comparison
Product-MXTRONICS Beidou II/GPS dual system navigation module
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:BMN2200S is a Beidou second-generation/GPS dual-system navig...
Specifications:--
Supplier:MXTRONICS
Inquiry:
Model:MXTRONICS Beidou RDSS baseband processing circuit
Comparison
Product-MXTRONICS Beidou RDSS baseband processing circuit
Batch number:--
Package:--
Quantity:--
Warehouse:--
Description:BM3005MQ is used for baseband signal processing of "RDSS" us...
Specifications:--
Supplier:MXTRONICS
Inquiry:

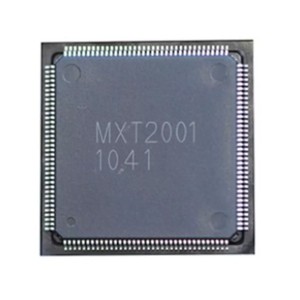

Model:Mxtronics Dual 8-bit 1G SPS Analog-to-Digital Converter
